Product Details

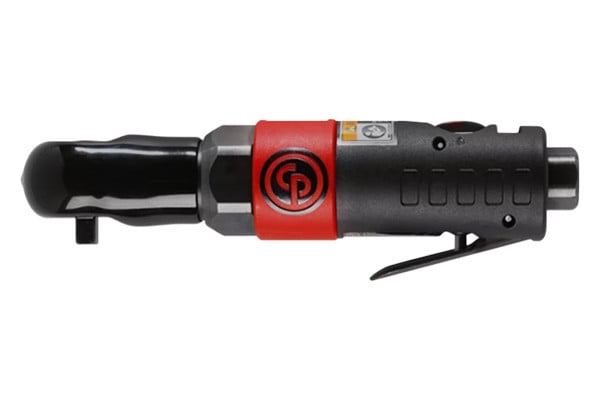

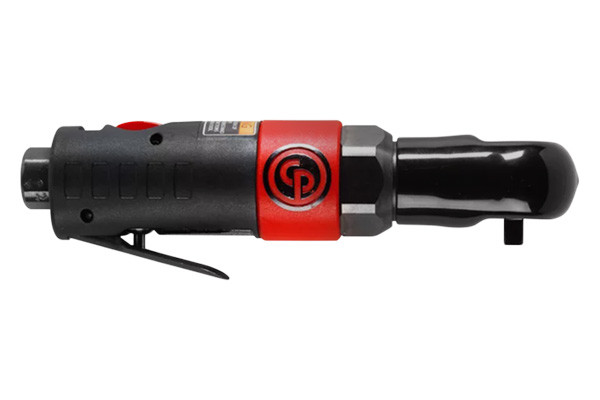

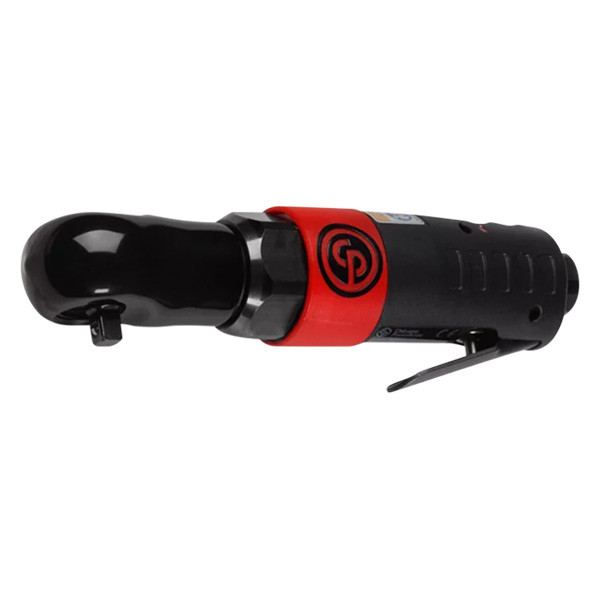

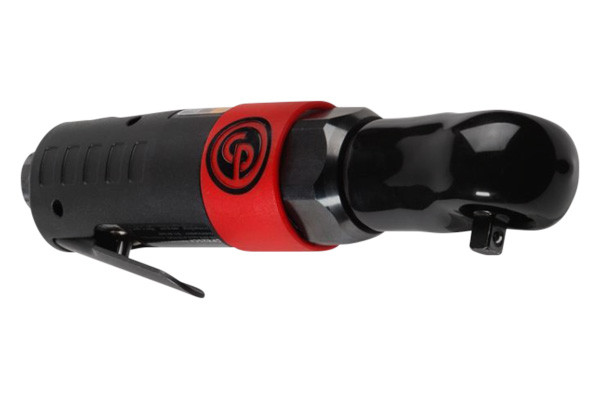

1/4" Drive 26 ft lb Air Ratchet (825C) by Chicago Pneumatic®. Chicago Pneumatic offers a wide range of powerful pneumatic ratchet wrenches from 1/4' to 1/2" square drive for every task. Due to their small size and light weight, pneumatic ratchets are an excellent choice for fastening in tight or cumbersome applications.
Specifications
| Actual air consumption: 15.5 cfm |
| Air inlet thread size: 1/4" |
| Average air consumption: 3.2 cfm |
| Box dimensions: 1.97x4.33x7.48" |
| European Sound standard: ISO-15744 |
| European Standards: EN ISO 11148-6:2012 |
| Free speed: 280 rpm |
| Height: 1.3 " |
| Length: 6.6" |
| Max torque: 26 ft.lbs |
| Min. hose size: 3/8" |
| Net weight: 1.1 lb |
| Over carton: 11x9.05x15.75" |
| Side to center: 3/4" |
| Sound Power: 93 db(A) |
| Sound pressure: 82 db(A) |
| Sound uncertainty: 3 db(A) |
| Square drive: 1/4" |
| Vibration: 4 m/s² |
| Vibration ISO: ISO-28927-2 |
| Vibration uncertainty (K): 1-1/2 m/s² |
| Width: 1-1/2" |
| Working torque Range: 4 - 18 ft.lbs |
Features
- Aluminum body with composite housing to insulate from cold
- Fast rundown 280 RPM
- Short & Wide lever
- Back exhaust avoids blowing dirt and dust
- New power easy-to-use regulator to regulate speed from zero to max speed
- Flat forward and reverse button
- Improved head material
- Head composite protective cover supplied with the tool
- Shank with ball retainer
